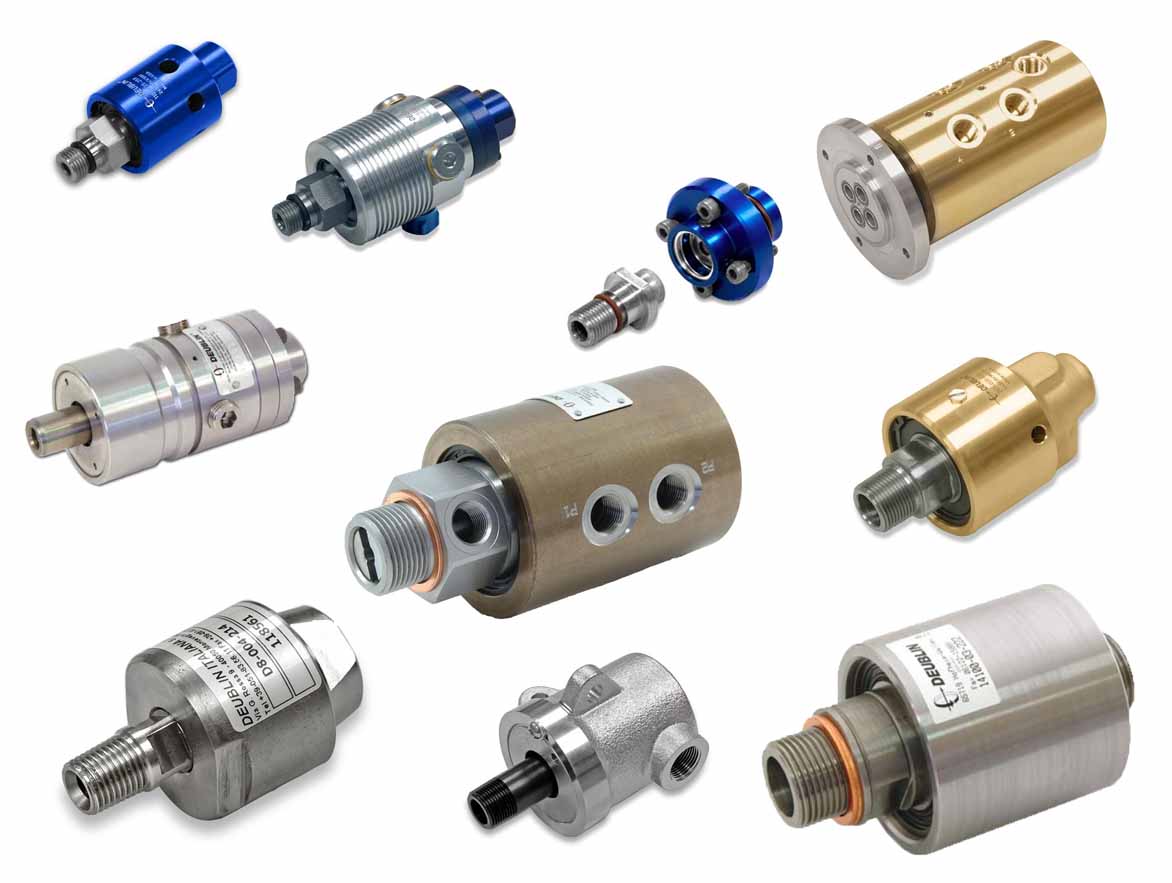

RFQ Rotation Unions
Your Request for Quotation for Rotation unions explained:
Preferably when available specify the item number and brand name of the installed union.
A short description of the application is highly recommended.
Your RFQ should at least mention:
Medium type, e.g. water, coolant, air etc.
Medium pressure (machine specified)
Medium flow (machine specified)
Medium temperature (machine specified)
Rotation of the rotor in RPM Rounds Per Minute
Rotor connection, e.g. 3/4" BSP RH, M16x1,5 LH etc.
Rotor pilot dimension in metric, e.g. not applicable, 16mm. 18mm. etc.
Hose connection thread (housing), e.g. 1/4" NPT RH, 3/4" BSP RH etc.
| ! There should not be any fixed piping connected to the housing as most rotating unions require space for radial movement |
composed by cs @ mrosupplies.eu
